A complete guide to PBT injection molding

What Is PBT?

Polybutylene Terephthalate (PBT) is a high‐performance engineering plastic that has become a popular choice among manufacturers and designers of injection‐molded components. From automotive components to electronic housings, PBT injection molding has become the go-to solution for manufacturers seeking the perfect balance of performance, processability, and cost-effectiveness.

But what makes PBT so special? How does it compare to other engineering plastics? And most importantly, how can you leverage its unique properties to enhance your products? We will discuss these topics in this article.

PBT is a semi-crystalline thermoplastic polyester that belongs to the family of engineering plastics. Chemically, it’s formed through the polycondensation of terephthalic acid and 1,4-butanediol, resulting in a polymer with exceptional dimensional stability and mechanical properties.

Let’s take a detailed look at the various properties of PBT material.

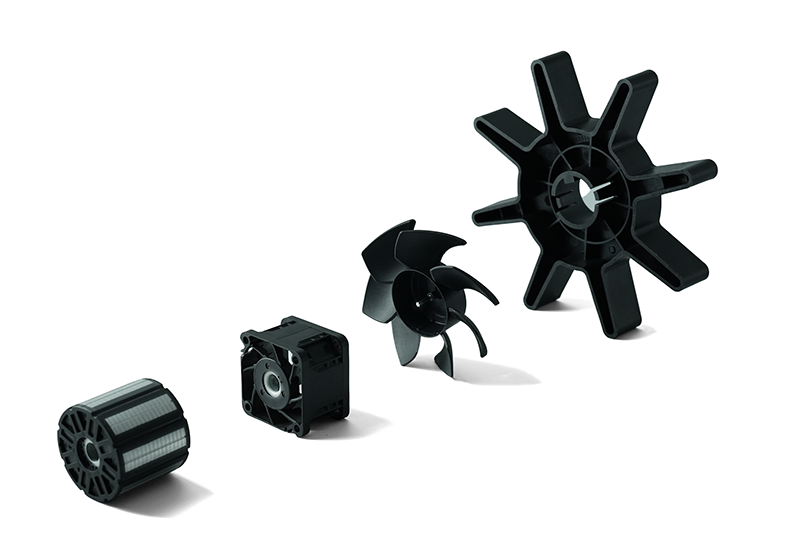

Image01- XDL’s products made of PBT

PBT Material Properties

Chemical Properties

One of PBT’s most valuable attributes is its exceptional chemical resistance.

Chemical Resistance: PBT shows outstanding resistance to a wide range of chemicals, including oils, greases, most solvents, and many acids and bases. This makes it particularly suitable for automotive under-the-hood applications and industrial environments where chemical exposure is common.
Weather and UV Stability: While unfilled PBT can be sensitive to UV radiation, modern grades with UV stabilizers or reinforcements offer excellent long-term outdoor performance. The material maintains its properties even after prolonged exposure to harsh environmental conditions.

The comparison of different PBT grades

Unfilled PBT / 15% Glass Filled / 30% Glass Filled / Mineral Filled

6 Advantages of PBT in Injection Molding

Exceptional Dimensional Stability

PBT’s exceptional dimensional stability is essential for precision-engineered components. Its ultra-low moisture absorption (<0.1%) – 10x lower than nylons – fundamentally eliminates humidity-induced swelling or warpage. This translates to minimal post-molding dimensional variation (±0.05% in 85% RH environments), ensuring critical tolerances are maintained in demanding applications. These properties make PBT indispensable for high-accuracy electrical connectors (where micron-level alignment matters) and automotive sensors that must function reliably despite thermal cycling or under-hood moisture exposure.

High Thermal Performance

• Continuous service up to 130–150°C (266–302°F) – 40°C higher than ABS.
• Short-term heat resistance: 200–240°C (392–464°F).
• Retains mechanical properties at elevated temperatures (e.g., under-hood automotive parts).

Superior Processing Efficiency

• Fast crystallization → Cycle times 20–40% shorter vs. nylons or POM.
• Lower energy consumption per unit.
• Excellent flow characteristics for thin-walled/complex geometries.

Outstanding Electrical Properties

PBT delivers outstanding electrical properties critical for high-performance electronic applications. Its exceptionally high dielectric strength (>20 kV/mm) and industry-leading Comparative Tracking Index (CTI >600V) ensure reliable insulation against electrical breakdown, even in densely packed circuits. The material inherently resists electrical arcing—a vital safety feature for connectors, relays, and EV charging components exposed to high voltages. Crucially, PBT maintains stable insulation properties under high-humidity conditions (<0.1% moisture absorption), eliminating risks of current leakage or performance degradation in demanding environments like automotive sensor housings or outdoor electronics.

Robust Chemical & Mechanical Performance

• Resists fuels, oils, solvents, and cleaning agents.
• High stiffness/strength (especially glass-fiber reinforced grades, e.g., 30% GF).
• Low friction coefficient for wear-resistant parts (gears, bearings).

Design Versatility & Compliance

PBT offers unparalleled design versatility and compliance readiness for regulated industries. Its formulation can be precisely engineered to achieve halogen-free flame retardance (UL94 V-0 rating) for critical safety components like EV charging connectors. Reinforcement with glass/carbon fibers (e.g., 30% GF) dramatically enhances strength/stiffness for structural applications while reducing warpage. Crucially, PBT readily meets stringent food/medical standards (FDA 21 CFR compliance, ISO 10993-5 cytotoxicity certification) for drug delivery systems and surgical tools. This adaptability is further enhanced by exceptional surface finish quality – delivering Class A aesthetics for consumer appliances without secondary coating – enabling designers to merge safety, performance, and visual appeal in a single material solution.

PBT vs. Other Engineering Plastics

PBT vs. PET (Polyethylene Terephthalate)

Both PBT and PET belong to the polyester family, but they exhibit distinctly different processing characteristics and performance attributes. While PET offers superior mechanical strength, PBT provides significant advantages in processing efficiency and dimensional stability.

The key differentiator lies in crystallization behavior: PBT crystallizes much faster than PET, enabling shorter cycle times and more consistent part quality. This processing advantage, combined with lower moisture sensitivity, makes PBT the preferred choice for precision injection molding applications.

PBT vs. PA (Nylon)

The fundamental difference between PBT and Nylon lies in their hygroscopic behavior. While Nylon offers exceptional mechanical strength and toughness, its high moisture absorption (2-9%) creates significant challenges in maintaining dimensional accuracy and consistent properties.

PBT’s extremely low moisture absorption (0.1%) ensures consistent performance across varying humidity conditions, making it superior for precision applications where dimensional stability is critical. This advantage eliminates the need for extensive drying procedures and maintains predictable properties in humid environments.

PBT vs. PC (Polycarbonate)

Polycarbonate and PBT represent different approaches to engineering plastic performance. PC excels in impact resistance and transparency, making it ideal for applications requiring toughness and optical clarity. However, PBT provides superior chemical resistance and cost-effectiveness.

The choice between these materials often depends on the specific environmental challenges faced by the application. PBT’s resistance to chemicals, stress cracking, and environmental factors makes it preferable for automotive and industrial applications, while PC’s exceptional impact strength suits consumer electronics and safety applications.

When to Choose PBT

Strategically select PBT when your application demands uncompromising precision, durability, and cost efficiency. This engineering thermoplastic excels in scenarios requiring critical dimensional stability (moisture absorption <0.1%) for humidity-sensitive components like automotive sensors. Opt for PBT when facing harsh chemical exposure – it resists fuels, solvents, and cleaning agents where nylons degrade. Its rapid crystallization enables 20–40% faster molding cycles versus alternatives, boosting production throughput. For electrical applications, PBT delivers consistent insulation properties (CTI >600V, dielectric strength >20 kV/mm) without humidity-induced performance drops. Ultimately, it provides the optimal balance as a cost-effective engineering solution, outperforming specialty polymers like PEEK for 80% of applications while costing 50–70% less.

To summarize, you should select PBT when your application requires：

• Dimensional precision and stability
• Excellent chemical resistance
• Fast injection molding cycles
• Good electrical insulation properties
• Cost-effective engineering plastic solution

Typical PBT Applications Across Industries

Automotive Industry

PBT has become indispensable in automotive applications due to its excellent performance under hood conditions.

Key Applications:

• Electrical Connectors: PBT’s dimensional stability ensures reliable electrical connections even under thermal cycling
• Sensor Housings: Chemical resistance protects sensitive electronics from automotive fluids
• Ignition Components: High-temperature performance and electrical insulation properties
• Fuel System Components: Excellent resistance to gasoline and automotive chemicals

Electronics and Electrical

The electronics industry relies heavily on PBT for critical components.

Applications Include:

• Switch Housings: Dimensional precision ensures proper mechanical action
• Relay Cases: Electrical insulation and flame retardancy
• Transformer Bobbins: High-temperature performance and electrical properties
• Circuit Breaker Components: Arc resistance and mechanical strength

Home Appliances

PBT’s combination of properties makes it ideal for appliance applications.

Common Uses:

• Motor Housings: Heat resistance and dimensional stability
• Control Panels: Surface quality and chemical resistance
• Pump Components: Chemical resistance to detergents and cleaning agents
• Heating Element Supports: High-temperature performance

Industrial Equipment

In industrial settings, PBT provides reliable performance.

Applications:

• Bearing Housings: Low friction and wear resistance
• Gear Components: Dimensional stability and fatigue resistance
• Valve Bodies: Chemical resistance and pressure capability
• Instrumentation Housings: Environmental protection and stability

Design and Processing Considerations

To obtain optimal performance from PBT‐based injection‐molded products, the following considerations should be kept in mind during part and mold design

Wall Thickness

Recommended wall thickness for PBT parts typically ranges from 1.0 mm to 3.2 mm. Very thin walls (<0.8 mm) may cause incomplete fill, while excessively thick sections (>4 mm) may induce sink marks or warpage.

Shrinkage Rate

PBT shrinkage is approximately 1.5–2.5 % (depending on grade). Reinforced grades shrink less than unfilled materials. Designers should account for shrinkage in mold dimensions.

Processing Temperatures

Precision thermal control is critical for successful PBT molding. Maintain barrel temperatures within 240–260°C to achieve optimal melt flow while avoiding degradation above 275°C. Set mold temperatures at 60–90°C to balance crystallization speed and part dimensional accuracy – higher temperatures enhance surface finish but extend cycle times. Crucially, PBT’s hygroscopic nature demands rigorous preconditioning: pre-dry pellets at 120°C for 2–4 hours to reduce moisture below 0.02%, preventing hydrolysis-induced strength loss and surface defects like splay or voids. This thermal discipline ensures maximum material performance while minimizing scrap rates.

Common Defects and Solutions

Effectively addressing common PBT molding defects requires targeted process interventions. To eliminate shrink marks (sink marks), strategically avoid thick wall sections (>4mm) and implement adequate holding pressure (≥80 MPa), while ensuring gate size exceeds 20% of wall thickness for uniform packing. Flash formation is prevented by optimizing clamping force (3-5 tons/in²) and incorporating precision venting (0.015-0.025 mm depth) at weld lines.

For silver streaks, enforce strict material handling protocols: pre-dry resin to <0.02% moisture content (120°C × 4 hours minimum) and reduce injection speed during initial cavity fill (≤50% max rate) to avoid shear-induced degradation. Proactive control of these parameters reduces scrap rates by 15-30% while maintaining cosmetic and functional part integrity.

Limitations of PBT Injection Molding

Material Limitations

• PBT is highly sensitive to hydrolysis-processing requires rigorous drying (<0.02% moisture at 110–120°C for 4–6 hours) to prevent molecular degradation.
• It also has a narrow thermal processing window (240–260°C melt vs. >275°C decomposition), demanding precise temperature control to avoid black spots or fumes.
• Compared to nylons or POM, PBT exhibits lower notch impact strength and limited continuous heat resistance (≤150°C even when glass-reinforced).

Processing & Defect Challenges

Glass-reinforced PBT suffers from anisotropic shrinkage (1.7–2.3% longitudinal vs. 0.5–1.2% transverse), causing warpage in thin-walled parts like automotive housings.

Common defects include:

• Floating fibers (poor fiber-matrix bonding),
• Burn marks (trapped gases at weld lines),
• Sink marks (insufficient holding pressure <59 MPa).

Mitigation requires optimized mold design (uniform cooling, venting slots >0.013mm), dynamic holding pressure, and slow-fast-slow injection profiling. For extreme conditions, consider switching to PPS or short-glass-fiber PBT grades.

Frequently Asked Questions About PBT

What is the operating temperature range for PBT?

PBT can typically operate continuously at temperatures up to 140°C, with short-term exposure possible up to 200°C. Glass-filled grades can handle even higher temperatures, making PBT suitable for demanding thermal environments.

Is PBT recyclable?

Yes, PBT is recyclable through mechanical recycling processes. However, the properties may be somewhat reduced in recycled grades. Many manufacturers now offer recycled content PBT grades that balance performance with environmental responsibility.

How can I determine PBT material quality?

Key quality indicators include:

• Consistent melt flow index values
• Proper additive content verification
• Complete material data sheets
• Supplier quality certifications
• Regular batch testing results

What is the minimum wall thickness for PBT injection molding?

The minimum recommended wall thickness for PBT is typically 0.8-1.0mm for unfilled grades and 1.0-1.2mm for glass-filled grades. Thinner sections may experience filling difficulties or reduced mechanical properties.

Can PBT be used in outdoor applications?

With proper UV stabilization, PBT can perform well in outdoor applications. UV-stabilized grades maintain their properties and appearance even after prolonged sun exposure, making them suitable for automotive exterior components and outdoor equipment.
