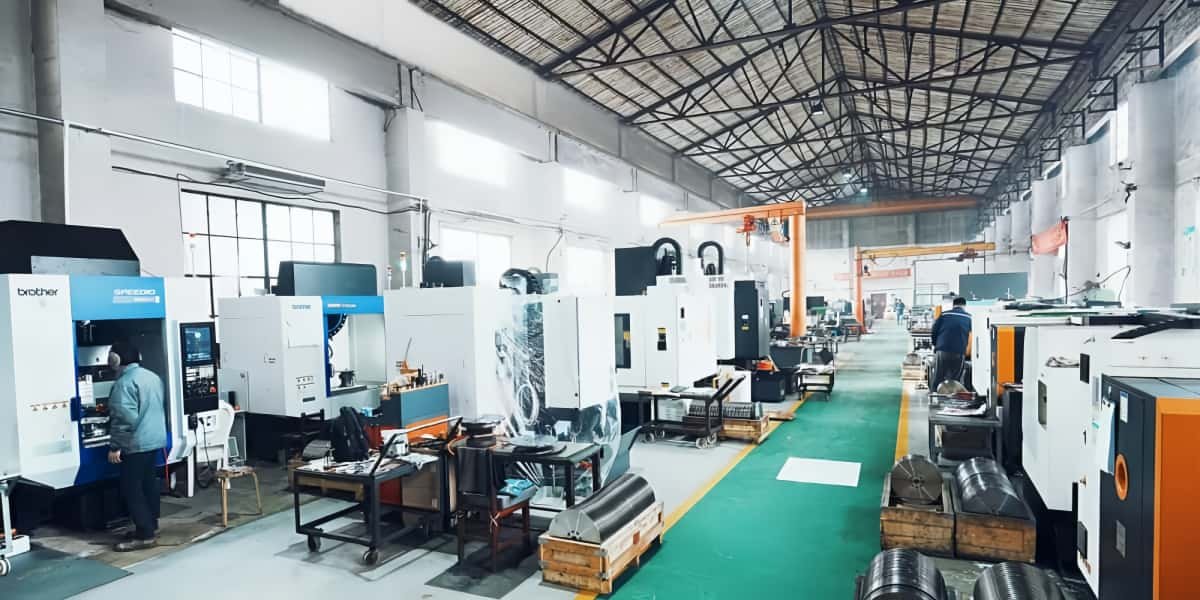

Precision CNC Machining
XDL Machinery specialize in delivering high-precision, high-quality and custom-machined parts, tailored to meet your unique specifications. Whether you’re looking for rapid prototyping, small batch runs, or large-scale production, our advanced CNC machining processes ensure superior quality and on-time delivery. Explore how we can help bring your designs to life with precision and efficiency.
Key Capabilities
Choose XDL Machinery for your CNC Machining needs, where precision, efficiency, and reliability come together. With a wide range of materials, advanced machining techniques, rapid prototyping, and flexible production volumes, we deliver high-quality, on-time results that meet your exact specifications, ensuring seamless collaboration and customer satisfaction.
1. Comprehensive Material Options and Certifications
We offer a wide range of materials, including various low carbon steels, alloy steel, steel, stainless steel, aluminum, brass, copper, and engineering plastics. Typically, we convert the customer’s material grade into its Chinese equivalent (GB standards), which is more cost-effective and widely used. However, if you prefer to stick to your specific material grade, we will make every effort to source it. All materials come with traceability and compliance certifications, such as material test reports, ensuring they meet international standards like ASTM, BS, DIN, and JIS.
Find out our commonly used Materials for CNC Machining
2. Precision and Tolerance Capabilities
Our CNC machines are capable of handling tight tolerances of up to +/- 0.005 mm or better, depending on the part size. We utilize state-of-art machines and machining tools, custom-designed fixtures, and advanced inspection tools and methods to ensure intricate parts, including complex geometries, meet exact specifications. Our machining processes include: CNC turning, milling, gantry milling, drilling, threading, grinding, and more. For complex parts, we employ both 3-axis and 5-axis milling to achieve precise, multi-dimensional results.
Learn more about our stringent Quality Control procedure.
3. Prototyping, low and large volume production capabilities
We are fully equipped for large-scale mass production, ensuring high efficiency and consistent quality for high-volume orders. At the same time, we also offer rapid prototyping and small batch services, providing flexibility for customers who need quick turnaround times for design validation or low-volume production runs.
We provide clear lead time estimates and maintain flexibility to prioritize urgent or expedited orders, ensuring customers receive their products on schedule.
4. Post-Processing Options
- Annealing: Softens material and improves ductility for further machining or forming.
- Quenching and Tempering: Increases strength, hardness and toughness, commonly applied to steels for optimal mechanical properties.
- Case Hardening (Carburizing): Hardens the surface while maintaining a tough core, ideal for wear-resistant parts like gears and shafts.

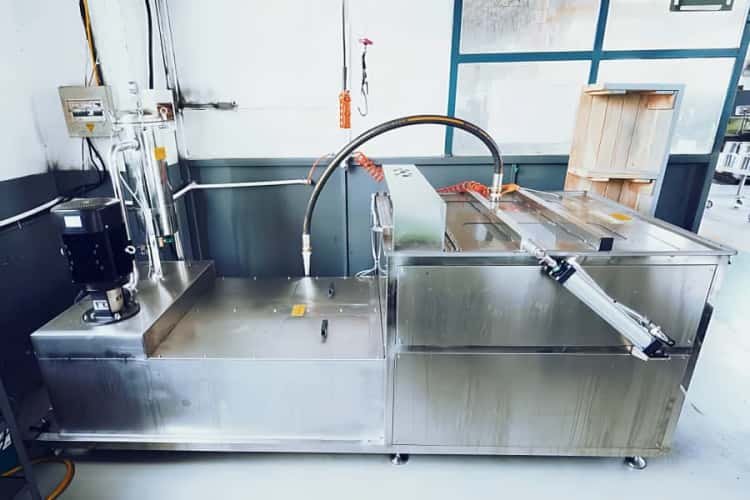

- Ultrasonic Cleaning: Utilizes ultrasonic vibrations and cleaning solutions to remove contaminants and impurities from part surfaces, ensuring optimal cleanliness and surface quality.

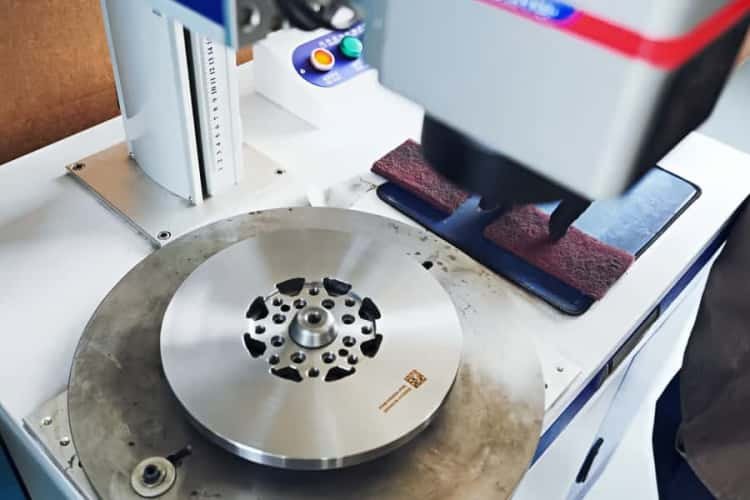

- Labeling: Provides clear and durable part identification through various methods such as laser engraving or stamping, ensuring traceability and compliance with customer specifications.
5. Surface Finishing
- Powder Coating: Provides a durable, corrosion-resistant finish for various metal parts.

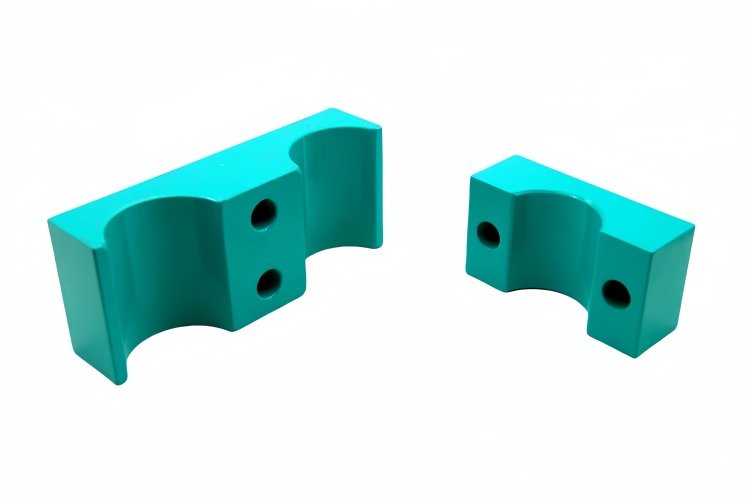

- Painting: Offers a wide range of colors and finishes to meet specific aesthetic and protective requirements.

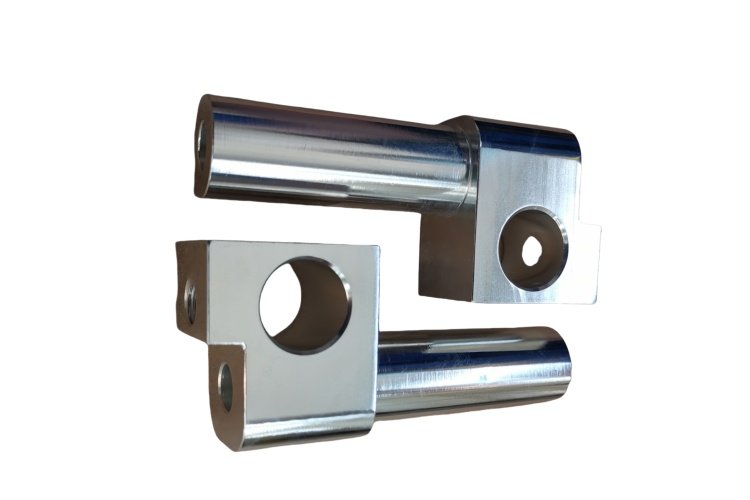

- Electroplating: Adds a metal coating (e.g., zinc, chrome, nickle) to improve corrosion resistance and aesthetic appeal.

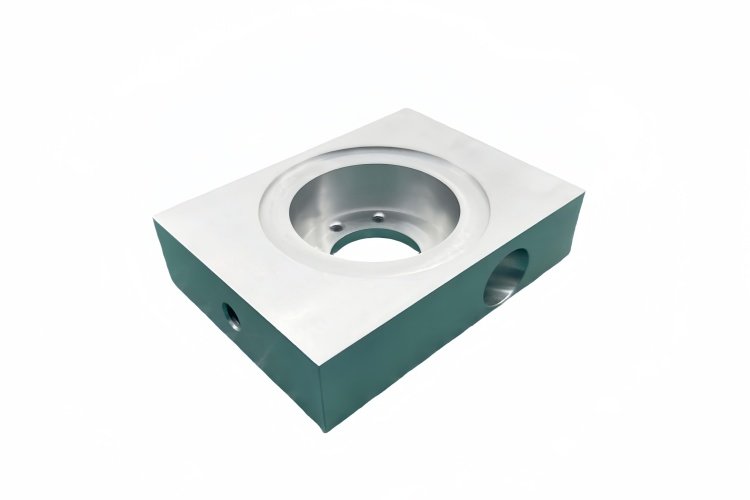

- Anodizing: Adds a protective and decorative oxide layer on metal parts.
- Phosphating (Phosphorizing): Creates a corrosion-resistant, phosphate coating ideal for painting and lubricating applications.
- Electrophoresis (E-coating): Provides a uniform, corrosion-resistant coating through an electro-deposition process, suitable for complex shapes and high durability.

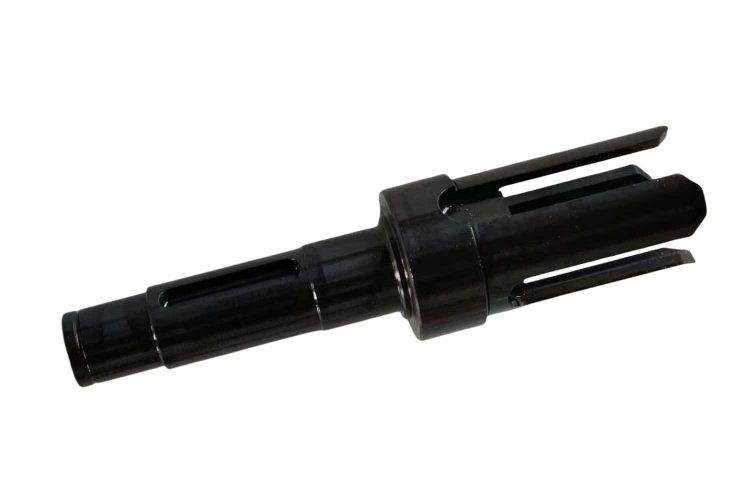

- Black Oxide Coating (Blackening): Adds a thin, black oxide layer to metal parts, providing corrosion resistance and a non-reflective finish ideal for aesthetic applications and industrial use.
6. Design Support and Engineering Collaboration

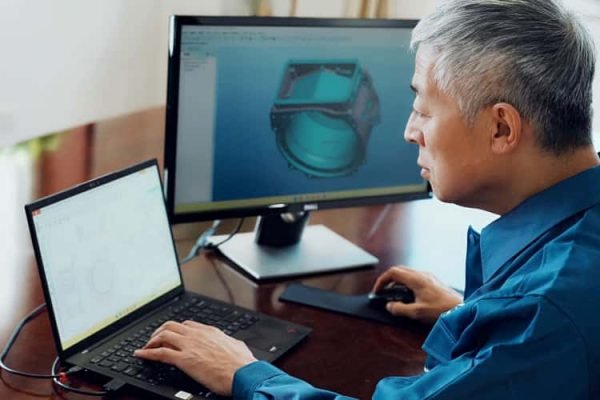

Our engineering team works closely with customers to provide expert design for manufacturability (DFM) support. We offer valuable feedback to optimize designs for cost-effective, efficient production. By working directly with 3D CAD files, we make precise adjustments and support engineering changes (ECRs), ensuring that your design is both manufacturable and aligned with production goals
7. Traceability and Documentation
We ensure full traceability throughout the manufacturing process, from material sourcing to final inspection. Each product can be traced back to its original heat number from the mill, ensuring complete material transparency. Our comprehensive documentation includes inspection reports, First Article Inspection (FAI) reports, and certificates of compliance, and any other documentations as per the customer’s specific requirements, verifying that each part meets the required specifications. This offers our customers the assurance that every part is produced to the highest standards.

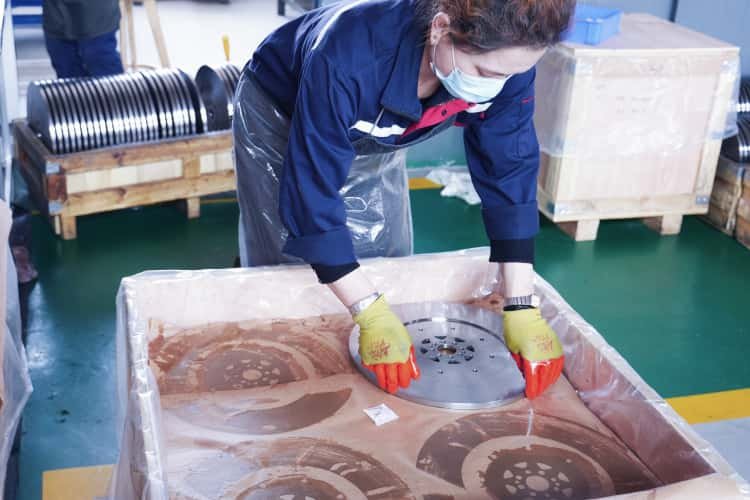

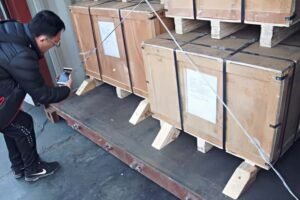

8. Packaging, Container Loading, and Logistics Management

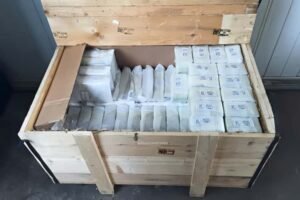

We offer customized packaging and loading solutions designed to protect parts during transit, including anti-static, moisture protection, and other specific packaging requirements. If necessary, we also monitor container loading and provide fixing solutions to ensure that packages are securely handled throughout transportation. Additionally, we manage logistics and international shipping options with flexible incoterms (e.g., EXW, FOB, DDP) to ensure reliable and timely delivery.
General Process for Manufacturing CNC Machined Parts

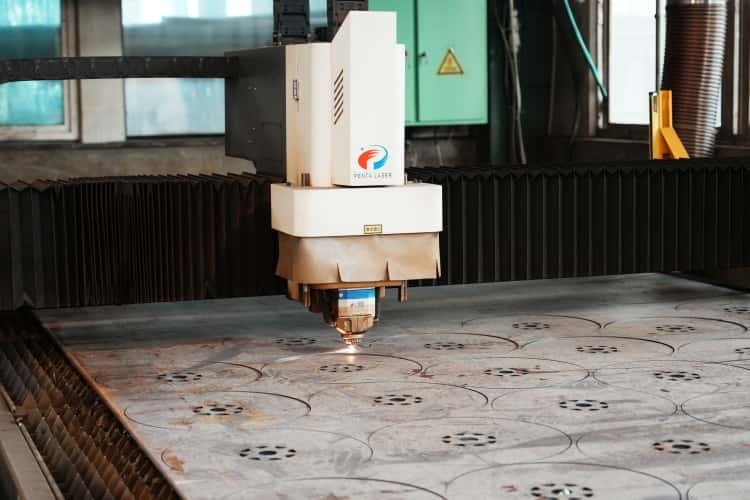

1. Laser cutting

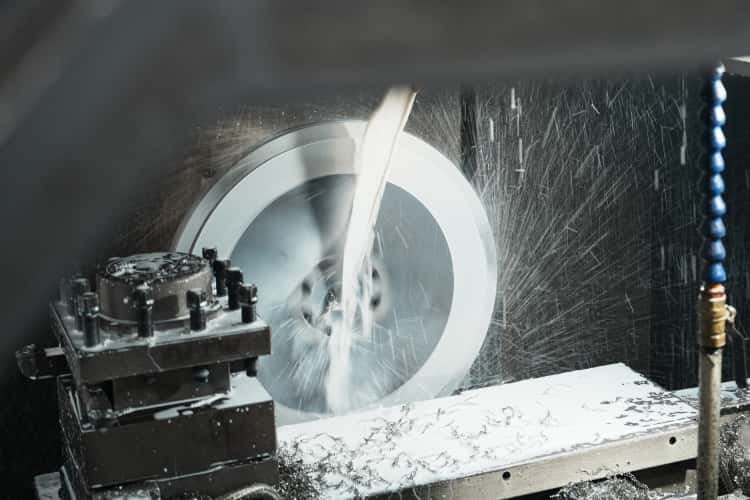

2. CNC Turning

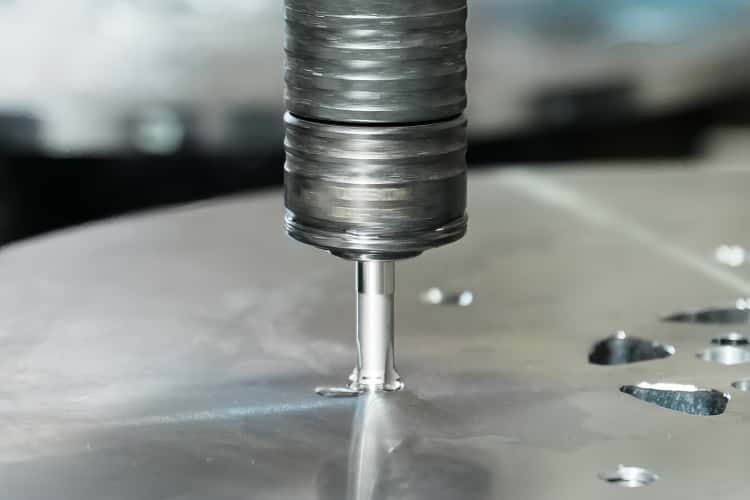

3. CNC Drilling

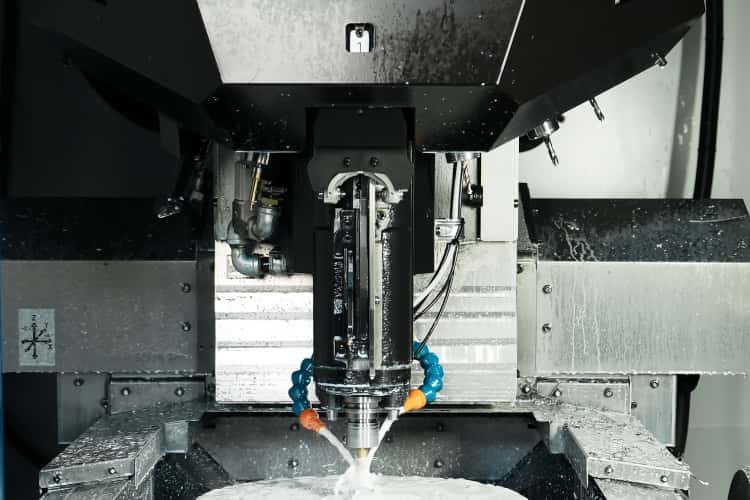

4. CNC Milling
5. In-progress inspection
6. Final Inspection

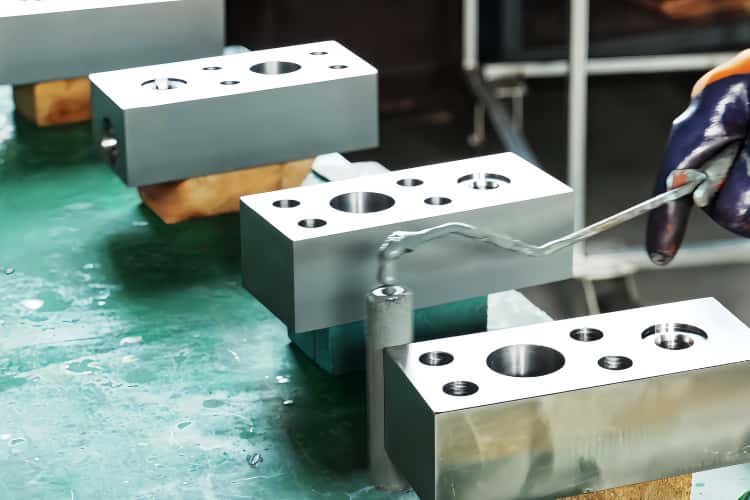

7. Finishing
8. Packaging

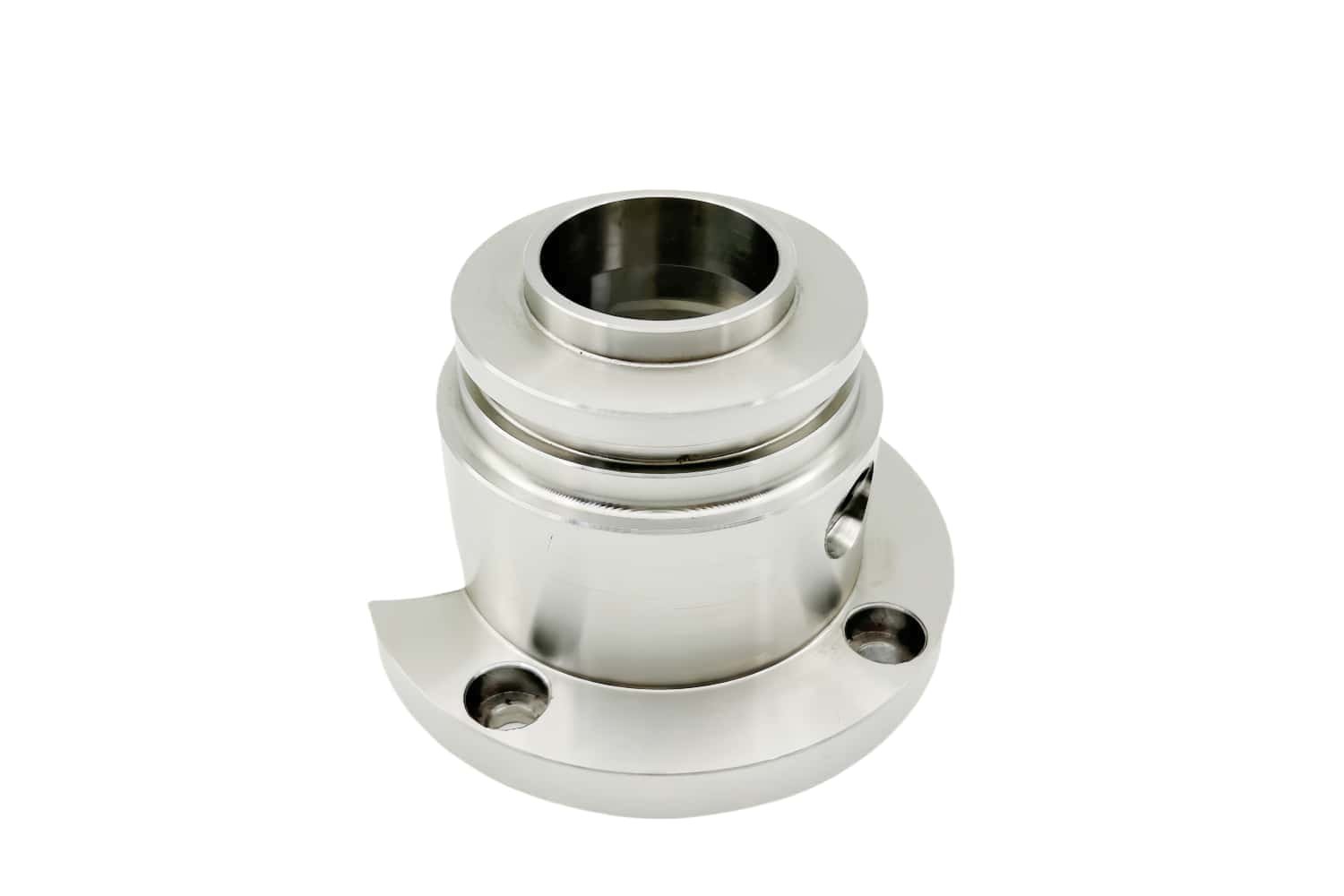

gallery of our CNC machined parts
Here’s a small selection of the CNC machined parts we’ve produced for our customers.
Quality Assurance
At XDL Machinery, we implement a rigorous in-house quality assurance procedure aligned with ISO 9001 standards to guarantee that every part meets our customers’ exact specifications. We take pride in our proactive approach and comprehensive oversight throughout the entire manufacturing process. Here’s how we manage quality assurance in our factory and machine shops:
Certified Machine Shop Partners
- ISO 9001 Certification: Our partner machine shops are all ISO 9001 certified, which demonstratie their commitment to maintaining high-quality standards and continuous improvement.
- Approved Supplier Certifications: Several of our partners also hold approved supplier certifications from renowned global companies such as Hitachi and Komatsu. These certifications validate them as trusted suppliers, ensuring they meet the stringent quality and performance requirements of these industry leaders.
Early-Stage Involvement
- Early-Stage Collaboration: We actively engage from the earliest stages of each project, working closely on machining process design to optimize quality, efficiency, and compliance.
- Control and Inspection Plans: Our engineers develop detailed control and inspection plans, identify critical dimensions, and meticulously document and standardize all procedures. This ensures consistent production outcomes and minimizes variability and errors throughout the manufacturing process.
In-Process Monitoring
- Production Supervision: Our team closely monitors critical production points, including material selection, machining parameters and inspection tools calibration, to maintain consistent quality standards.

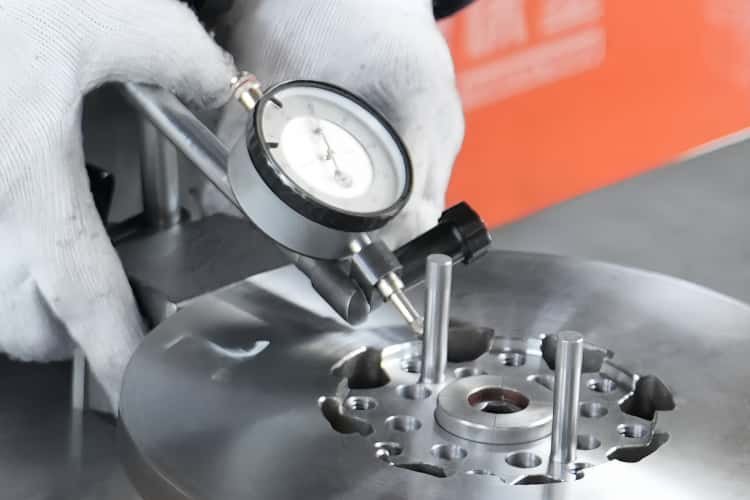

- In-Process Inspections: We conduct in-process inspections at key production stages to verify compliance with specifications and ensure superior quality throughout the manufacturing cycle.
Final Inspection

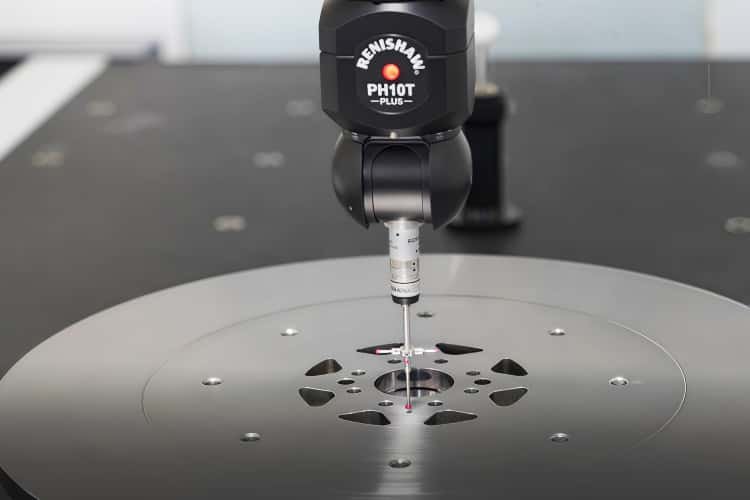

- Thorough Final Inspections: XDL Machinery conducts detailed final inspections to ensure the accuracy and quality of all finished products before shipment.

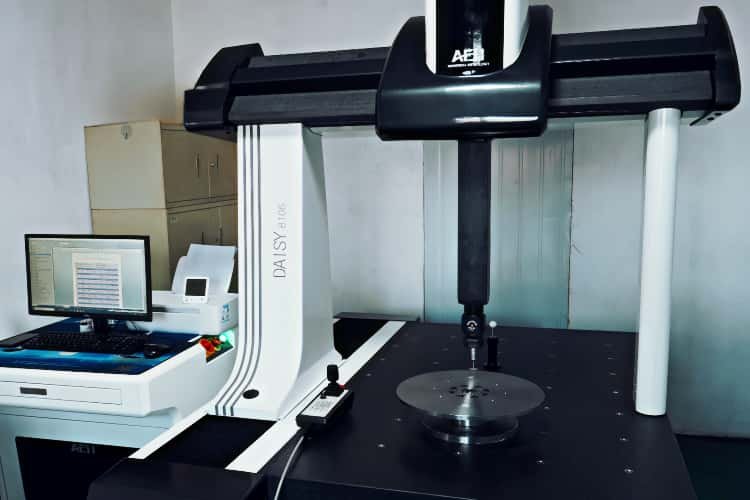

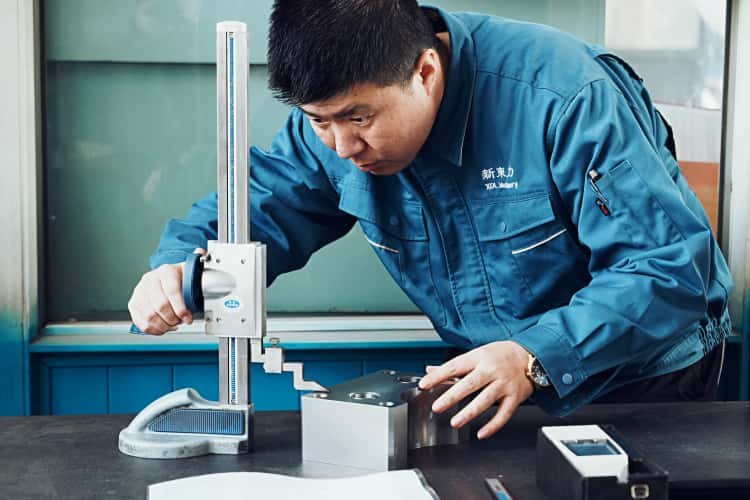

- Advanced Measuring Tools: We utilize a wide range of advanced measuring tools, including CMMs (Coordinate Measuring Machines), calipers, surface roughness testers, coating thickness gauges, go/no-go gauges, height gauges, inside micrometers, and dial indicators. These precision instruments guarantee that each product meets customer specifications, ensuring consistency, reliability, and the highest quality standards.
Immediate Issue Resolution
- Prompt Issue Resolution: If any discrepancies or quality issues arise, we immediately communicate with our customers to implement corrective actions and resolve the problem as quickly as possible.
- Root Cause Analysis: We collaborate closely with our machine shops to identify and address root causes, ensuring continuous improvement in the manufacturing process.
Ongoing Compliance and Improvement
- Routine Audits: As part of our quality management system, we conduct regular audits to ensure our partner machine shops maintain full compliance with ISO 9001 standards.
- Proactive Delivery Monitoring: We closely monitor delivery schedules and take proactive steps to ensure on-time deliveries, guaranteeing our customers receive high-quality products when they need them.
Commonly Used Materials in CNC Machining
Our CNC machining services support a wide variety of materials to meet the diverse needs of our customers. These include metals such as mild steel, alloy steel, stainless steel, aluminum, brass and copper; plastics like ABS, Nylon, POM, PE, and PMMA; as well as thermoset composites and laminates like G10, G11, and FR4. The selection of material depends on the specific requirements of each project, including factors like strength, conductivity, corrosion resistance, and cost-effectiveness. Below are some of the most commonly used materials in CNC machining.
metal
Description
Mild steel, also known as low-carbon steel, typically contains 0.05% to 0.25% carbon content. It is one of the most widely used types of steel due to its affordability, versatility, and ease of fabrication. With its low carbon content, mild steel is easier to machine and shape compared to higher-carbon steels. This makes it a popular choice for CNC machining when precision and cost-effectiveness are key.
Mechanical Properties
- Yield Strength: 250–350 MPa (36.5–50.8 ksi)
- Tensile Strength: 370–510 MPa (53.6–73.9 ksi)
- Elongation: 20–30%
- Hardness: Rockwell B60–B80
- Ductility: Good, with excellent formability and plastic deformation resistance, making it easy to shape into complex forms without cracking.
Machinability
Mild steel has excellent machinability, which makes it one of the easiest materials to process in CNC machining. It is highly versatile, suitable for a wide range of machining processes such as milling, turning, drilling, and boring. Mild steel can be easily cut into intricate shapes with minimal tool wear and is ideal for producing parts with smooth finishes. Though it can be prone to heat buildup during machining, proper cooling and lubrication help manage temperatures and prolong tool life.
Common Applications
- Automotive parts (engine components, brackets, gears, shafts)
- Machinery components (cylinder heads, structural supports, bushings, bearings)
- Industrial equipment (pumps, valves, actuators, housings)
- Construction components (reinforcing parts, beams, columns, frames)
- Prototypes (custom parts for machinery, fixtures, or mechanical assemblies)
Description
Low-alloy steel is a type of steel that contains a small percentage of alloying elements (typically less than 5%) such as chromium, molybdenum, nickel, vanadium, or tungsten. These alloying elements enhance the steel’s mechanical properties, such as strength, toughness, and hardness, without significantly compromising its ductility or machinability. Low-alloy steel is commonly used in CNC machining for applications that require moderate strength and durability, including parts used in structural and mechanical engineering.
Mechanical Properties
- Yield Strength: 250–450 MPa (36–65 ksi)
- Tensile Strength: 400–600 MPa (58–87 ksi)
- Elongation: 20–30%
- Hardness: Rockwell B80–B100
- Ductility: Good, with excellent toughness and the ability to withstand impact loads.
Machinability
Low-alloy steels are generally easy to machine and are considered more machinable than high-alloy steels due to their moderate hardness and strength. They can be processed with standard CNC tools and are often used in milling, turning, drilling, and boring operations. When machining low-alloy steel, cutting speeds and feed rates need to be adjusted to prevent excessive tool wear and ensure a high-quality finish. Lubrication and cooling fluids help reduce friction and heat buildup, extending tool life and improving surface finish.
Common Applications
- Automotive (engine blocks, gears, shafts)
- Construction (bridges, pipelines, structural steel)
- Heavy equipment (excavators, loaders, machinery parts)
- Oil and gas (valves, pumps, pressure vessels)
- Prototypes (custom parts, mechanical components)
Description
High-alloy steel is a category of steel that contains a significantly higher proportion of alloying elements (such as chromium, molybdenum, nickel, vanadium, or tungsten) compared to standard carbon steels. These alloying elements enhance the steel’s properties, such as strength, corrosion resistance, and wear resistance, making it ideal for applications in harsh environments. High-alloy steels are often used in CNC machining for parts requiring high tensile strength, durability, and resistance to high temperatures. Common types include tool steels, stainless steels, and high-speed steels.
Mechanical Properties
- Yield Strength: 450–1,000 MPa (65–145 ksi)
- Tensile Strength: 600–1,400 MPa (87–203 ksi)
- Elongation: 10–25%
- Hardness: Rockwell C50–C65
- Ductility: Generally lower than lower-alloy steels, but still offers good toughness under certain conditions.
Machinability
High-alloy steels tend to be more difficult to machine compared to low-alloy steels due to their increased strength and hardness. These materials often require carbide tools or high-speed steel (HSS) tools to manage the higher cutting forces. Cutting speeds must be controlled carefully to avoid excessive heat buildup, which could lead to tool wear or distortion. Coolants or lubricants are essential to reduce friction and maintain machining efficiency. High-alloy steels with high hardness may also require pre-heating before machining to reduce the risk of tool damage and premature wear.
Common Applications
- Tooling and dies (molds, cutting tools, dies)
- Aerospace (turbine blades, jet engine components)
- Oil and gas (downhole tools, drilling equipment)
- Automotive (engine parts, transmission gears)
- Power generation (boiler tubes, turbine parts)
- Prototypes (high-performance, wear-resistant components)
Description
Austenitic stainless steel is the most commonly used type of stainless steel, known for its excellent corrosion resistance, formability, and toughness. Comprising primarily of iron, chromium, and nickel, this material has a face-centered cubic (FCC) crystal structure, which gives it superior ductility and weldability. Austenitic stainless steels are non-magnetic and are widely used in industries such as food processing, chemical, and medical devices. Common grades include 304, 316, and 321, each offering varying levels of resistance to corrosion and high temperatures.
Mechanical Properties
- Yield Strength: 210–350 MPa (30.5–50.8 ksi)
- Tensile Strength: 500–800 MPa (72.5–116 ksi)
- Elongation: 40–60%
- Hardness: Rockwell B80–B95
- Ductility: Excellent, with high elongation and impact resistance, even at low temperatures.
Machinability
Austenitic stainless steel is known for being more challenging to machine compared to other steels due to its strength and work-hardening characteristics. However, with proper tooling and cutting parameters, it can be successfully machined. It typically requires carbide tools or high-speed steel tools, as it tends to work-harden during machining. To avoid excessive wear on tools, coolants or lubricants are necessary to reduce heat buildup. Machining at lower speeds and with a steady feed rate is crucial to prevent hardening at the cutting surface.
Common Applications
- Food processing equipment (storage tanks, conveyor systems)
- Chemical processing (pipes, valves, pressure vessels)
- Medical devices (surgical instruments, implants)
- Aerospace (aircraft components, turbine blades)
- Marine industry (ship parts, offshore structures)
- Prototypes (corrosion-resistant, high-strength parts)
Description
Duplex stainless steel is a high-performance alloy that combines the properties of both austenitic and ferritic stainless steels. This combination provides excellent strength, corrosion resistance, and ductility, making it ideal for harsh environments, including marine and chemical applications. Duplex steels typically contain chromium, nickel, and molybdenum, offering superior resistance to pitting and crevice corrosion. Due to its high strength and durability, duplex stainless steel is commonly used in CNC machining for parts that require both toughness and resistance to corrosion.
Mechanical Properties
- Yield Strength: 450–620 MPa (65–90 ksi)
- Tensile Strength: 600–800 MPa (87–116 ksi)
- Elongation: 15–25%
- Hardness: Rockwell B85–B95
- Ductility: Good, with excellent stress corrosion cracking resistance and high tensile strength.
Machinability
Duplex stainless steel is more difficult to machine than standard austenitic steels due to its higher strength and hardness. However, with proper tooling and cutting techniques, it can be successfully machined using CNC equipment. It requires carbide tools or high-speed steel (HSS) tools and typically benefits from low cutting speeds to avoid work hardening. Using coolants or lubricants is essential to maintain the material’s properties and prevent overheating during high-speed cutting.
Common Applications
- Oil and gas industry (piping, valves, fittings)
- Marine industry (offshore platforms, boat components)
- Chemical processing (heat exchangers, reactors)
- Power generation (turbine components, reactor vessels)
- Water treatment (desalination plants, filters)
- Prototypes (high-strength, corrosion-resistant parts)
Description
Aluminum alloys are lightweight, corrosion-resistant metals that are commonly used in CNC machining for parts that require strength and lightness. These alloys are made by combining aluminum with other elements like copper, silicon, magnesium, and zinc, which enhance specific properties like strength, machinability, and corrosion resistance. Common types include 2000 series (copper alloyed), 6000 series (magnesium and silicon alloyed), and 7000 series (zinc alloyed). Aluminum alloys are widely used in industries such as aerospace, automotive, and construction.
Mechanical Properties
- Yield Strength: 90–550 MPa (13–80 ksi)
- Tensile Strength: 150–600 MPa (22–87 ksi)
- Elongation: 10–30%
- Hardness: Rockwell B40–B90
- Ductility: Excellent, with good formability and the ability to withstand bending, stretching, and shaping without cracking.
Machinability
Aluminum alloys are known for their excellent machinability, which makes them one of the most commonly used materials in CNC machining. Aluminum can be easily milled, turned, drilled, and tapped with high-speed tools, producing smooth, precise finishes. Its low density reduces the cutting forces required, and it offers good chip removal properties. It can be machined at relatively high speeds, though it requires proper cooling and lubrication to prevent tool wear and material deformation. Aluminum 6061 and 7075 are particularly favored in machining for their balance of strength and ease of processing.
Common Applications
- Aerospace components (aircraft frames, fuselage parts)
- Automotive parts (wheels, engine blocks, chassis)
- Construction (window frames, structural components)
- Consumer goods (electronics, housings)
- Marine parts (boat hulls, propellers)
- Prototypes (lightweight, high-strength parts)
Description
Brass is an alloy of copper and zinc, known for its corrosion resistance, machinability, and attractive gold-like appearance. Brass is often used in CNC machining for precision parts that require a combination of strength, ductility, and aesthetic appeal. The alloy’s properties can vary depending on the ratio of copper to zinc, with some brass alloys containing additional elements like lead for improved machinability. It is commonly used in automotive, plumbing, and electronic applications.
Mechanical Properties
- Yield Strength: 200–350 MPa (29–50 ksi)
- Tensile Strength: 250–550 MPa (36–80 ksi)
- Elongation: 10–40%
- Hardness: Rockwell B60–B90
- Ductility: Good, with excellent formability and the ability to be easily shaped or bent without cracking.
Machinability
Brass is one of the easiest metals to machine, making it a popular choice for CNC machining. It has excellent cutting characteristics, especially in alloys with higher zinc content or lead additives, which enhance machinability. Brass can be milled, turned, drilled, and tapped with high-speed tools, and it typically produces a smooth, polished finish. Brass is relatively soft, allowing for high-speed cutting, but it can work-harden if not properly managed during machining. Coolants or lubricants can be used to minimize heat buildup and prolong tool life.
Common Applications
- Plumbing fittings (valves, faucets, connectors)
- Automotive parts (brake components, fittings)
- Electrical connectors (terminals, switches)
- Prototypes (precision parts, decorative items)
Description
Copper is a highly conductive metal known for its excellent thermal and electrical conductivity, corrosion resistance, and malleability. It is widely used in CNC machining for applications that require high conductivity or ductility, such as electrical components, heat exchangers, and plumbing. Copper is easy to machine and offers good corrosion resistance in most environments, making it ideal for both industrial and consumer applications.
Mechanical Properties
- Yield Strength: 210–250 MPa (30.5–36.3 ksi)
- Tensile Strength: 210–250 MPa (30.5–36.3 ksi)
- Elongation: 30–45%
- Hardness: Rockwell B50–B60
- Ductility: Excellent, with outstanding formability and workability, allowing it to be easily bent or shaped without cracking.
Machinability
Copper is very machinable due to its softness and malleability, allowing it to be easily cut, drilled, and milled with standard CNC tools. It machines well at relatively high speeds and can achieve smooth surface finishes. However, copper is a relatively sticky material, so it requires proper lubrication during machining to reduce tool wear and prevent material buildup. Coolants are recommended for high-speed operations to manage heat buildup and preserve the material’s properties.
Common Applications
- Electrical components (wires, connectors, terminals)
- Heat exchangers (radiators, coils)
- Plumbing (pipes, fittings, faucets)
- Automotive (radiators, engine parts)
- Prototypes (conductive parts, electrical prototypes)
Plastic
Description
ABS is a versatile thermoplastic polymer known for its strength, impact resistance, and ease of machining. It is widely used for CNC machining due to its good balance of rigidity and toughness, making it suitable for both functional and aesthetic parts. ABS is commonly used in industries such as automotive, consumer goods, and electronics.
Mechanical Properties
- Yield Strength: 40–50 MPa (5.8–7.2 ksi)
- Tensile Strength: 45–60 MPa (6.5–8.7 ksi)
- Elongation: 20–50%
- Hardness: Rockwell R110–R120
- Ductility: Good, with excellent impact resistance and flexibility under stress.
Machinability
ABS is easy to machine with standard CNC tools like HSS or carbide. It can be cut, drilled, and milled at high speeds, typically 2000–3000 RPM. Its smooth surface finish and moderate heat resistance make it ideal for precise parts. However, it is sensitive to heat, so proper cooling is required to avoid warping.
Common Applications
- Automotive parts (dashboard components, trims)
- Consumer goods (toys, appliance housings)
- Electronics (keyboards, connectors)
- Plumbing fittings (pipes, valves)
- Prototypes (rapid prototyping, mockups)
Description
PA (Polyamide), commonly known as Nylon, is a strong, durable thermoplastic material with excellent wear resistance, chemical resistance, and low friction properties. It is widely used in CNC machining for producing parts that require strength and resilience. Nylon is available in various grades, including PA6, PA66, and PA12, each offering specific advantages depending on the application.
Mechanical Properties
- Yield Strength: 50–85 MPa (7.2–12.3 ksi)
- Tensile Strength: 75–85 MPa (10.9–12.3 ksi)
- Elongation: 20–30%
- Hardness: Rockwell R100–R120
- Ductility: Good, with excellent impact resistance and flexibility, especially in thicker sections.
Machinability
Nylon is relatively easy to machine with CNC equipment. It can be milled, turned, and drilled with standard tools. Due to its tendency to absorb moisture, it’s important to control humidity during machining to prevent dimensional instability. Nylon requires sharp tools and may benefit from coolants to reduce heat build-up during high-speed cutting.
Common Applications
- Automotive parts (gears, bushings, bearings)
- Industrial machinery (rollers, conveyor components)
- Consumer products (brushes, combs, clothing)
- Electrical components (connectors, housings)
- Prototypes (rapid prototyping, functional parts)
Description
POM (Polyoxymethylene), commonly known as Delrin, is a high-performance thermoplastic with excellent mechanical strength, rigidity, and dimensional stability. Known for its low friction and wear resistance, Delrin is widely used in CNC machining to create precision components that require high stiffness and long-term durability. It is commonly used in automotive, aerospace, and consumer products.
Mechanical Properties
- Yield Strength: 50–70 MPa (7.2–10.1 ksi)
- Tensile Strength: 60–70 MPa (8.7–10.1 ksi)
- Elongation: 15–30%
- Hardness: Rockwell R115–R120
- Ductility: Good, with exceptional impact resistance and low creep under load.
Machinability
Delrin is highly machinable with CNC equipment, offering smooth finishes and precision cuts. It can be easily turned, milled, drilled, and tapped. Delrin’s low coefficient of friction makes it ideal for parts that undergo continuous motion. It typically requires sharp tooling and low cutting speeds to minimize material buildup. As a non-hygroscopic material, Delrin does not absorb moisture, making it stable under varying environmental conditions.
Common Applications
- Automotive parts (gears, bearings, bushings)
- Industrial components (pulleys, rollers, precision fittings)
- Consumer products (sliding mechanisms, handles)
- Electronics (insulator components, housings)
- Prototypes (high-precision functional parts)
Description
PE (Polyethylene) is one of the most commonly used thermoplastics known for its low friction, chemical resistance, and impact strength. It is available in various grades, such as HDPE (High-Density Polyethylene) and LDPE (Low-Density Polyethylene), each offering distinct properties for different applications. PE is widely used for CNC machining due to its ease of processing and cost-effectiveness. It is commonly found in industries like packaging, food processing, and medical devices.
Mechanical Properties
- Yield Strength: 20–30 MPa (2.9–4.4 ksi)
- Tensile Strength: 30–40 MPa (4.4–5.8 ksi)
- Elongation: 50–100%
- Hardness: Rockwell R60–R80
- Ductility: Excellent, with high impact resistance and flexibility.
Machinability
Polyethylene is very easy to machine using CNC equipment. It can be milled, turned, and drilled with standard tools. It is a low-cost material with a low melting point, making it important to control the cutting speeds and cooling to prevent overheating and distortion. Because of its low friction properties, PE is ideal for parts with sliding or moving components.
Common Applications
- Packaging (bottles, containers, films)
- Food processing (cutting boards, trays)
- Medical devices (tubing, surgical drapes)
- Industrial components (liners, gaskets, seals)
- Prototypes (rapid prototypes, functional parts)
Description
PMMA, commonly known as Acrylic or Perspex, is a transparent thermoplastic with excellent optical clarity, weather resistance, and UV stability. It is often used as a lightweight alternative to glass due to its superior impact resistance and ease of machining. PMMA is widely used in CNC machining for creating parts that require high transparency and aesthetic appeal, commonly found in signage, displays, and lighting applications.
Mechanical Properties
- Yield Strength: 60–80 MPa (8.7–11.6 ksi)
- Tensile Strength: 70–80 MPa (10.1–11.6 ksi)
- Elongation: 4–10%
- Hardness: Rockwell M100–M110
- Ductility: Moderate, with a tendency to crack under high stress, but strong under normal conditions.
Machinability
PMMA is easy to machine with CNC tools and provides excellent surface finishes. It can be cut, milled, drilled, and turned with precision, offering a smooth, glossy finish ideal for aesthetic parts. Since PMMA is prone to cracking under stress, care must be taken to avoid sharp corners and high cutting forces. Using slow speeds and adequate cooling helps prevent overheating and material distortion.
Common Applications
- Signage (illuminated signs, displays)
- Lighting (light covers, diffusers)
- Automotive (tail lights, interior trims)
- Consumer goods (displays, window panels)
- Prototypes (transparent parts, models)
Thermoset Composites
Description
G10 is a high-strength glass epoxy laminate, created by layering glass fabric with epoxy resin and then curing it under high pressure and temperature. It is a type of fiberglass reinforced plastic that offers exceptional strength, insulation properties, and durability. G10 is commonly used in CNC machining for manufacturing electrical components, insulating materials, and structural parts that require lightweight and high-strength materials. It is known for its high resistance to moisture, chemicals, and extreme temperatures, making it suitable for industrial and electrical applications.
Mechanical Properties
- Yield Strength: 100–160 MPa (14.5–23.2 ksi)
- Tensile Strength: 250–350 MPa (36.5–50.8 ksi)
- Elongation: 2–4%
- Hardness: Rockwell M80–M90
- Ductility: Low, with excellent brittleness resistance and impact resistance under high stress.
Machinability
G10 is a hard material, but it has good machinability using CNC tools designed for composite materials. It can be milled, drilled, sanded, and cut with standard tools, though carbide tools are recommended to handle its abrasiveness. When machining G10, coolants or lubricants are essential to reduce friction and heat buildup. The material is prone to generating dust, so it’s important to use proper dust collection and ventilation during machining to prevent inhalation. With proper tools and techniques, G10 can be shaped into intricate designs, making it suitable for precise electrical and mechanical components.
Common Applications
- Electrical components (insulating boards, circuit boards, connectors)
- Aerospace parts (electrical insulators, structural components)
- Automotive parts (insulating parts, non-conductive components)
- Prototypes (custom electrical enclosures, fixtures, and connectors)
- Industrial machinery (insulated housings, washers, gaskets)
Description
G11 is a high-performance glass epoxy laminate similar to G10, but it offers superior electrical properties and higher temperature resistance. Made by layering glass fabric with epoxy resin and curing under high pressure and temperature, G11 provides excellent mechanical strength, dimensional stability, and electrical insulation. G11 is widely used in CNC machining for applications requiring high-strength, high-temperature resistance, and non-conductive properties. It is often used in electrical and industrial applications, where durability and insulation are critical.
Mechanical Properties
- Yield Strength: 200–280 MPa (29–41 ksi)
- Tensile Strength: 400–600 MPa (58–87 ksi)
- Elongation: 2–5%
- Hardness: Rockwell M85–M95
- Ductility: Low, with exceptional resistance to impact, temperature variations, and mechanical stress.
Machinability
G11 is harder than G10 and requires carbide tools or diamond-coated tools for CNC machining due to its increased strength and abrasiveness. It can be milled, drilled, and turned effectively, but it generates dust when machined, so it’s important to use appropriate dust collection systems. The material is prone to heat buildup during machining, so coolants or lubricants are recommended to reduce friction and extend tool life. G11’s ability to hold tight tolerances makes it ideal for high-precision electrical components and structural applications.
Common Applications
- Electrical insulation (circuit boards, transformers, insulator bushings)
- Aerospace (electrical insulators, structural parts in high-temperature environments)
- Industrial machinery (motor components, high-strength washers, and gaskets)
- Prototypes (high-temperature resistant parts for electronics and machinery)
- Power generation (generator insulators, switchgear parts)
Description
FR4 is a flame-retardant grade of glass epoxy laminate that is widely used for electrical and electronic applications due to its excellent insulation properties, flame resistance, and mechanical strength. It is made by impregnating glass fabric with epoxy resin and curing it under high pressure, ensuring a highly durable and flame-resistant material. FR4 is commonly used in CNC machining for producing circuit boards, insulating components, and structural parts that require high electrical insulation and flame resistance.
Mechanical Properties
- Yield Strength: 150–250 MPa (21.7–36.2 ksi)
- Tensile Strength: 250–400 MPa (36.2–58 ksi)
- Elongation: 2–4%
- Hardness: Rockwell M70–M90
- Ductility: Low, with excellent electrical insulation properties and impact resistance under mechanical stress.
Machinability
FR4 is relatively easy to machine using CNC equipment, though it requires carbide or diamond-coated tools due to its abrasive nature. It can be milled, drilled, and cut to precise tolerances, making it ideal for electronics and high-performance components. When machining FR4, it’s important to use coolants or lubricants to reduce heat buildup and improve tool life. Additionally, due to its tendency to produce dust, proper ventilation and dust collection systems should be in place during machining.
Common Applications
- Printed Circuit Boards (PCBs) (used in electronics, computers, and communication devices)
- Electrical insulation (transformers, motors, switchgear)
- Aerospace components (insulators, high-temperature parts)
- Automotive parts (electrical components, sensors, insulation materials)
- Prototypes (custom electronics, insulated components)
Our stories with Hitachi Construction Machinery
Since 2010, XDL Machinery has been a trusted partner of Hitachi Construction Machinery, one of the world’s leading manufacturers of construction machinery. Specializing in over 200 types of machined components for their excavators and loaders, we produce parts ranging from 0.5 kg to 420 kg, including complex hydraulic blocks, manifolds, and covers, all requiring tight tolerances and multi-axis machining.
Our commitment to quality is proven through our ISO 9001-certified processes and status as a Hitachi Approved Supplier. Each part undergoes rigorous quality checks, ensuring a delivery accuracy rate of 99.5%. Ongoing collaboration with Hitachi has enabled us to optimize machining processes, reducing lead times by 50% and supporting the smooth running of their assembly lines.
By continuously investing in advanced CNC technology and fostering innovation, we consistently exceed customer expectations. Our role in enhancing Hitachi’s efficiency has reinforced our reputation as a reliable, long-term partner in the construction machinery industry.
Industries We Serve
- Construction Machinery
- Energy and Power Generation
- Automotive Maintenance
- Oil and Gas
- Urban Infrastructure
F.A.Q.
A: Our CNC machining supports a variety of materials, including:
- Metals (e.g., Mild Steel, Low/High Alloy Steel, Stainless Steel, Aluminum Alloy, Brass, Copper)
- Plastics (e.g., ABS, PA/Nylon, POM, PE, PMMA)
- Composites (e.g., G10 (Glass Epoxy Laminate), G11, FR4)
- Other appliable materials
A: Our CNC machining offers exceptional precision, with typical tolerances ranging from ±0.001″ (0.025mm) to ±0.0002″ (0.005mm).
The exact level of precision depends on factors such as the machine, tooling, material, and operator expertise.
A: Our lead time for CNC machining varies based on the complexity of the part, material, and production quantity.
- For prototypes, the lead time can be as quick as a few days.
- For larger production runs, it can take several weeks to complete the machining process.
A: Absolutely!
We cater to both small prototype runs and large-scale production with equal precision.
A: You can easily request a quote by clicking the Get A Quote button. We’ll be happy to assist you in your CNC machining needs.
