Introduction: When Should You Use Metal 3D Printing?
In March 2026, I visited the TCT Asia 3D printing exhibition in Shanghai together with two of our manufacturing partners — one specialized in CNC machining and the other in injection molding.
Our goal was simple: to understand when to use 3D printing in manufacturing, not just in theory, but in real industrial applications.
Many customers today are evaluating: Should this part be made with CNC machining, injection molding, or metal 3D printing?
This article shares practical insights based on what we observed.
Where Metal 3D Printing Applications Create Real Value
When discussing metal 3D printing applications, one thing is clear: it is not a universal solution.
It creates real value in scenarios such as:

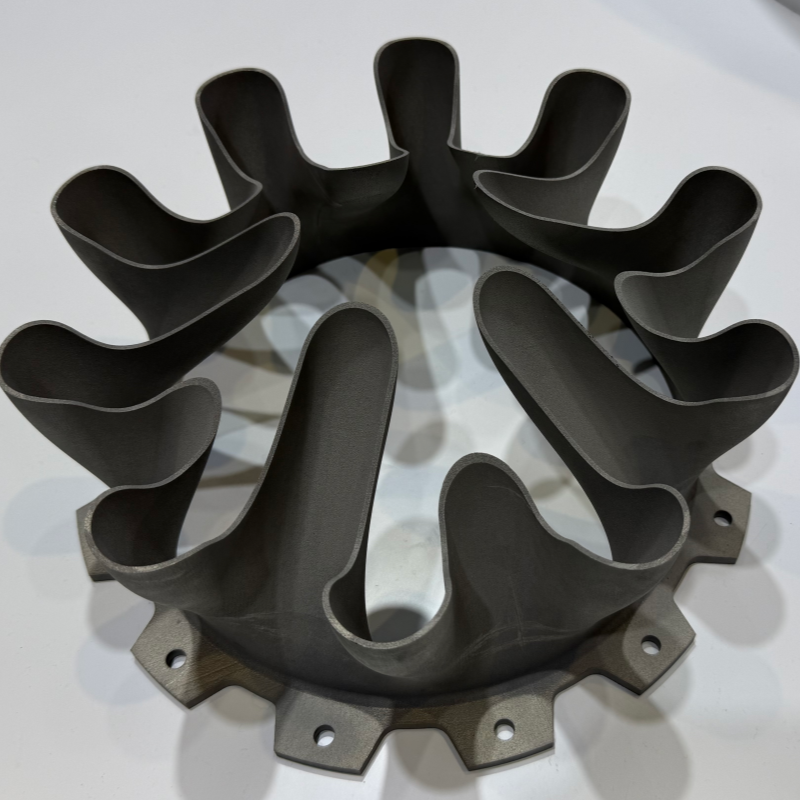

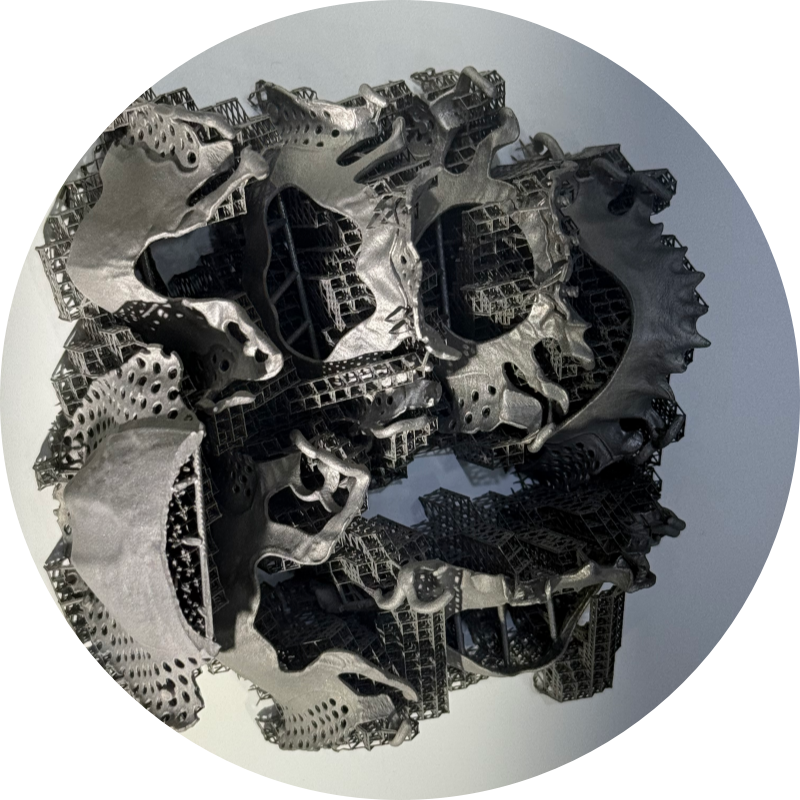

- Complex internal geometries that cannot be machined
- Very small internal channels (0.3–0.5 mm)
- Low-volume production or rapid prototyping
- Large, complex near-net-shape parts
- Mold optimization (e.g., conformal cooling)
However, compared to traditional manufacturing:
- It is not ideal for simple parts
- It is not competitive in high-volume production
- Cost remains a key limitation
3D printing is not about replacing traditional manufacturing — it is about enabling designs that cannot be achieved otherwise.
Additive Manufacturing vs CNC Machining: A Hybrid Approach
A major trend is the combination of additive manufacturing and CNC machining, also known as hybrid manufacturing.
In real production:
- 3D printed parts often require CNC finishing
- Surface treatment (blasting, polishing) is still necessary
- Large components are printed and then machined
- Some machines now combine additive and subtractive processes
From our experience:
Additive manufacturing creates complexity, while CNC machining ensures precision.
This hybrid approach is becoming the standard in many industries.
The Cost of Metal 3D Printing vs Machining: The Real Constraint
Although the technology is advancing rapidly:
- Faster build speeds
- Improved material properties
- Better control of porosity and surface quality
The key question remains cost.
When comparing metal 3D printing cost vs machining, several factors stand out:
- High raw material cost
- Expensive equipment investment
- Long production time per part
- Significant post-processing requirements
This leads to a critical distinction:
In aerospace, the question is: “Can it be made?”
In commercial manufacturing, the question is: “Can it be made cost-effectively and at scale?”
Large-Scale Additive Manufacturing: A Growing Opportunity

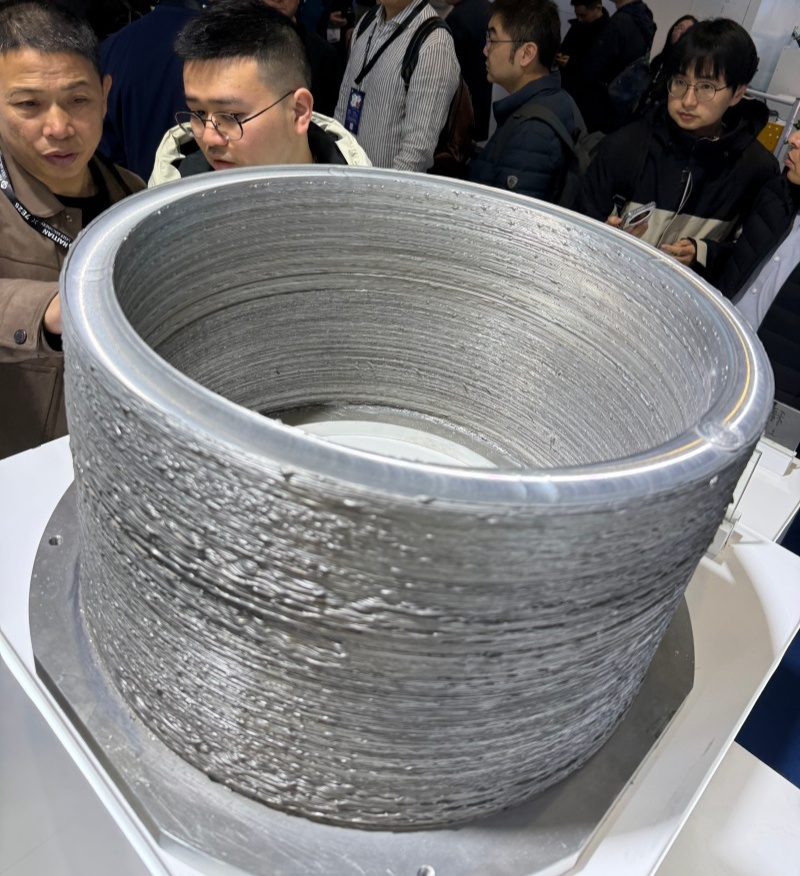

One emerging area is large-scale additive manufacturing.
At TCT Asia, we observed:
- Parts ranging from hundreds of kilograms to over one ton
- Wire-fed and powder-fed systems (especially aluminum)
- No need for tooling or molds
However:
- Accuracy is typically 0.5–1 mm
- CNC machining is still required for final tolerances
The real value is reducing lead time and cost before machining — not replacing it.
3D Printing vs Traditional Manufacturing: It’s About Fit
A common misconception is comparing 3D printing vs traditional manufacturing as competing solutions.
In reality, they serve different purposes:
- Low volume vs mass production
- Complex geometry vs simple parts
- High material cost vs tooling investment
There is no single best process — only the most suitable one for each application.
Conclusion: Choosing the Right Manufacturing Process
At XDL Machinery, we work with CNC machining, injection molding, and additive manufacturing every day.
We believe the future is not about choosing one technology over another — but about selecting the right process combination based on:
- Cost
- Performance
- Production volume
- Design complexity
If you are currently evaluating a part and deciding between CNC machining vs 3D printing, we are happy to share practical recommendations based on real-world manufacturing experience.
