Q235 Overview
Q235 steel is a widely used low-carbon structural steel grade primarily found in China and international markets. Its name derives from its key characteristic of having a minimum yield strength of 235 megapascals (MPa), with the “Q” indicating its quality standard.
Engineers and manufacturers appreciate Q235 for its balanced performance characteristics, using it in projects ranging from building frameworks and bridge components to machine manufacturing and vehicle chassis, where its reliable mechanical properties and affordability make it an indispensable engineering material.
Q235 Equivalent Standards
Its comparable international standards include:
- ASTM A36 in the United States
- SS 400 in Japan
- S235JR in Europe
Characteristics of Q235 Steel
Q235 steel is distinguished by its unique metallurgical composition and mechanical properties that make it a versatile structural material. Composed of low carbon content (0.14-0.22%) with trace amounts of manganese and silicon, this steel grade exhibits exceptional ductility and remarkable formability.
Key Characteristics of Q235 Steel
- High Adaptability: Across multiple industries (construction, manufacturing, infrastructure)
- Superior Weldability and Machinability:
- Low carbon content reduces brittleness during fabrication
- Excellent for various construction and engineering applications
- Ductility and Toughness:
- Easily shaped and formed during manufacturing
- Ability to absorb energy and resist fracture under dynamic loading conditions
- Corrosion Resistance: Excellent in mild environments
- Cost-Effectiveness: A highly economical material solution
- Standardized Production: Meets international quality benchmarks
Physical Properties of Q235 Steel
Chemical Composition
Typical elemental composition:
| Element | Percentage |
|---|---|
| Carbon (C) | ≤ 0.22% |
| Silicon (Si) | ≤0.35% |
| Manganese (Mn) | ≤1.40% |
| Phosphorus (P) | ≤0.045% |
| Sulfur (S) | ≤0.05% |
This table summarizes the chemical composition of Q235A, Q235B, Q235C, and Q235D grades of steel, highlighting the allowable percentages of key elements such as carbon, silicon, manganese, phosphorus, and sulfur.
Detailed Composition by Grade
| Steel Grade | Carbon (C) % | Silicon (Si) % | Manganese (Mn) % | Phosphorus (P) % | Sulfur (S) % |
|---|---|---|---|---|---|
| Q235A | ≤0.22 | ≤0.35 | ≤1.40 | ≤0.045 | ≤0.050 |
| Q235B | ≤0.20 | ≤0.35 | ≤1.40 | ≤0.045 | ≤0.045 |
| Q235C | ≤0.17 | ≤0.35 | ≤1.40 | ≤0.040 | ≤0.040 |
| Q235D | ≤0.17 | ≤0.35 | ≤1.40 | ≤0.035 | ≤0.035 |
Mechanical Properties
Key mechanical characteristics:
- Yield Strength: Approximately 235 MPa
- Tensile Strength: 370 MPa to 500 MPa
- Elongation: 20% to 26%, depending on thickness
This table outlines the mechanical properties of Q235A, Q235B, Q235C, and Q235D steel grades, including yield strength, tensile strength, and elongation percentages.
Mechanical Properties by Grade
Note: Based on thickness (diameter) of up to 16mm.
| Steel Grade | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Q235A | ≥ 235 | 370 – 500 | ≥ 26 |
| Q235B | ≥ 235 | 370 – 500 | ≥ 26 |
| Q235C | ≥ 235 | 370 – 500 | ≥ 26 |
| Q235D | ≥ 235 | 370 – 500 | ≥ 26 |
Physical Characteristics
- Density: Approximately 7.85 g/cm³
- Melting Point: 1420°C to 1460°C
- Hardness: 155HB
Advantages of Q235 Steel
Good Mechanical Properties
Moderate Strength
- Yield strength of 235 MPa
- Sufficient for structural and general engineering applications
Ductility
- Excellent plasticity and toughness
- Ability to withstand deformation under stress without cracking
Weldability
- Low carbon content (0.14%-0.22%)
- Reduced risk of cracking or defects during welding
Versatility
Wide Applications
- Building structures
- Bridges
- Vehicles
- Machinery parts
- General steel constructions
Ease of Fabrication
- Easy to process
- Compatible with common manufacturing techniques
- Simple cutting, bending, and machining
Cost-Effectiveness
Economic Efficiency
- Affordable production process
- Consistent market availability
- Competitive pricing
Corrosion Resistance
Treatment Options
- Galvanization possible
- Coating treatments available
- Improved rust and weathering resistance
Compatibility
Standardization
- Interchangeable with international standards
- Easy integration with other materials
- Global trade compatibility
Environmental Considerations
Sustainability
- Fully recyclable
- Environmentally friendly material choice
In summary, Q235 steel strikes a balance between performance, ease of use, and cost, making it an ideal choice for a wide range of general-purpose engineering applications.
Industries & Applications of Q235 Steel
Construction and Infrastructure
- Building frameworks
- Bridge components
- Structural supports
- Railway and highway systems
Manufacturing and Machinery
- Gears and shafts
- Industrial equipment components
- Brackets and casings
Automotive and Transportation
- Chassis parts
- Support structures
- Non-critical vehicle components
Energy and Power
- Power plant structures
- Pipeline supports
- Transmission tower components
Shipbuilding
- Hull structures
- Deck components
- Secondary structural elements
Agricultural Equipment
- Machinery frames
- Storage tanks
- Implement components
Household and Commercial Goods
- Furniture
- Appliance frames
- Storage solutions
Pipes and Tubing
- Low-pressure fluid transmission
- Scaffolding
- Fencing
- Handrails
Renewable Energy
- Wind turbine structures
- Solar panel supports
- Biomass processing equipment
Frequently Asked Questions on Q235 Steel
How does the thickness of Q235 steel affect its yield strength？
The thickness of Q235 steel significantly influences its yield strength, which is a critical factor in its application in construction and engineering.
Here’s how thickness affects the yield strength of Q235 steel:
Yield Strength Overview
Q235 steel, categorized as ordinary carbon structural steel, has a nominal yield strength of approximately 235 MPa for thinner sections. This yield strength is defined as the stress at which the material begins to deform plastically, meaning it will not return to its original shape once the stress is removed.
Effect of Thickness on Yield Strength
As the thickness of Q235 steel increases, its yield strength tends to decrease. This phenomenon can be summarized as follows:
- For thicknesses up to 16 mm: the yield strength remains around 235 MPa
- 16-40 mm: the yield strength drops to approximately 225 MPa
- Further increasing thickness: Gradual strength reduction
| Thickness(Diameter) (mm) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
| ≤16 | 370~500 | ≥235 | ≥26 |
| ＞16～40 | 370~500 | ≥225 | ≥26 |
| ＞40～60 | 370~500 | ≥215 | ≥25 |
| ＞60～100 | 370~500 | ≥215 | ≥24 |
| ＞100～150 | 370~500 | ≥195 | ≥22 |
| ＞150～200 | 370~500 | ≥185 | ≥21 |
Implications
Understanding this relationship is crucial for engineers and designers who must ensure that structural components made from Q235 steel can withstand the required loads without yielding.
Therefore, when selecting Q235 steel for applications, it is essential to consider not only the thickness but also how it will impact performance under expected loading conditions.
What are the specific impact temperatures for Q235A, Q235B, Q235C, and Q235D？
Q235 steel is a widely used carbon structural steel in China, categorized into four grades: Q235A, Q235B, Q235C, and Q235D. Each grade is distinguished by its impact temperature characteristics, which affect its suitability for various applications.
Impact Temperatures for Q235 Grades
Q235A: This grade does not have a specified minimum impact temperature, indicating it can be used in environments without significant temperature concerns.
Q235B: Designed for applications where the impact temperature is expected to be above +20°C. It has a minimum Charpy impact energy of 27 J at this temperature.
Q235C: Suitable for environments where the impact temperature is above 0°C. It maintains adequate toughness with similar impact energy requirements.
Q235D: This grade is intended for use in colder conditions, with a minimum impact temperature of -20°C, ensuring it can withstand lower temperatures while still providing reliable performance.
Summary Table of Impact Temperatures
| Grade | Minimum Impact Temperature | Minimum Charpy Impact Energy |
|---|---|---|
| Q235A | Not specified | Not specified |
| Q235B | +20°C | ≥ 27 J |
| Q235C | 0°C | ≥ 27 J |
| Q235D | -20°C | ≥ 27 J |
Comparative Analysis: Q235 and Other Structural Steel Grades
- Yield and Tensile Strength: Q235 has a yield strength of 235 MPa, similar to S235JR but slightly lower than ASTM A36. Its tensile strength ranges from 370 to 500 MPa, which is comparable to both grades.
- Ductility and Elongation: Q235 exhibits good ductility with elongation percentages ranging from 21% to 26%, making it suitable for applications requiring flexibility.
- Weldability: All three grades offer excellent weldability, making them suitable for various construction methods.
- Applications: Q235 is primarily used in construction and machinery, while A36 and S235JR are also utilized in general structural applications.
| Property | Q235 | ASTM A36 | S235JR |
|---|---|---|---|
| Yield Strength (MPa) | 235 | 250 | 235 |
| Tensile Strength (MPa) | 370-500 | 400-550 | 360-510 |
| Elongation (%) | 21-26 | ≥20 | ≥26 |
| Weldability | Excellent | Excellent | Excellent |
Comparative Analysis: Q235’s Performance in Different Environments
Q235 steel’s performance can vary based on environmental conditions, particularly temperature and exposure to corrosive elements.
- Low-Temperature Performance:
- Q235C and Q235D are specifically designed for improved performance in low-temperature environments. They have enhanced impact resistance, making them suitable for applications in colder climates, such as bridges and offshore structures.
- Corrosion Resistance:
- Q235 steel is susceptible to corrosion when exposed to harsh atmospheric conditions. Its low carbon content contributes to moderate corrosion resistance; however, it may require protective coatings or treatments in marine or industrial environments to prevent deterioration.
- Dynamic Loading Conditions:

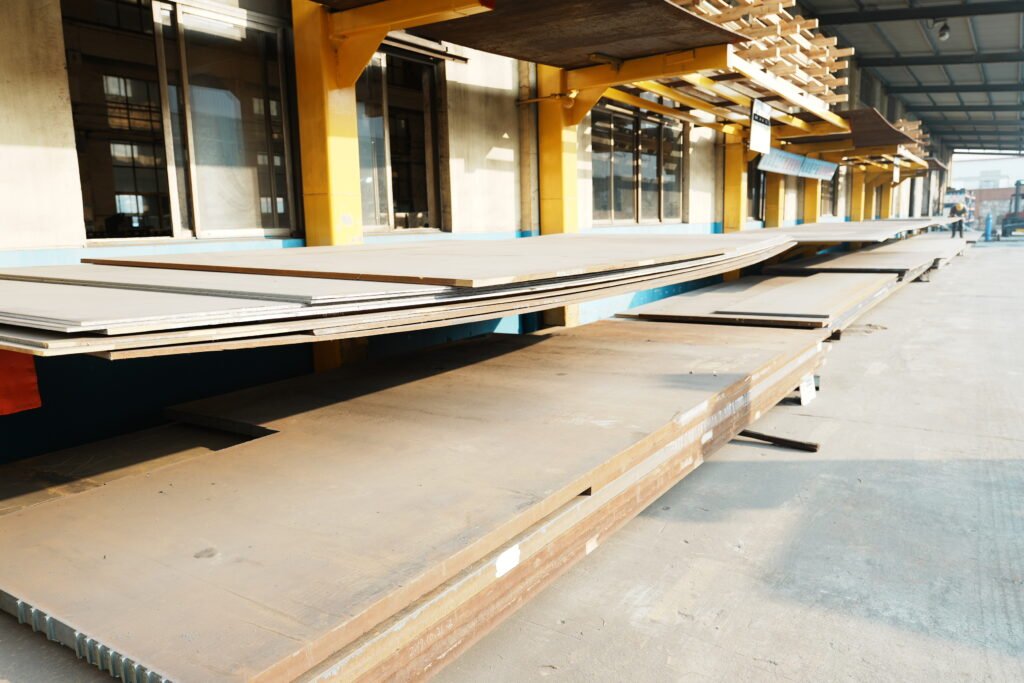

What is the common dimensions of the Q235 Steel plate?
This table summarizes the common dimensions of Q235 steel plates, including thickness, width, and length.(The specifications may vary slightly depending on the manufacturer and standards used.)
| Dimension | Range |
|---|---|
| Thickness | 1.5 mm to 100 mm |
| Width | 1510 mm to 2300 mm |
| Length | 6 m to 12 m |
| Alternative Width | Up to 4200 mm |
| Alternative Length | Up to 18,000 mm |
Conclusion
Q235 steel remains a versatile, cost-effective, and reliable material for numerous industrial applications. Its balanced properties, global standardization, and adaptability make it an essential resource in modern engineering and manufacturing.
Disclaimer: Specifications may vary by manufacturer. Always consult technical datasheets from your material vendor for precise application requirements.
